Extended Ladder App
Purpose of App
This app provides a visual of upcoming stops to passengers. It can show the previous stop, the next few stops, and the final stop at the same time. What is shown can be adjusted in the application settings.
Language Tab
The language tab affects how text, dates, and numbers are formatted within the application.

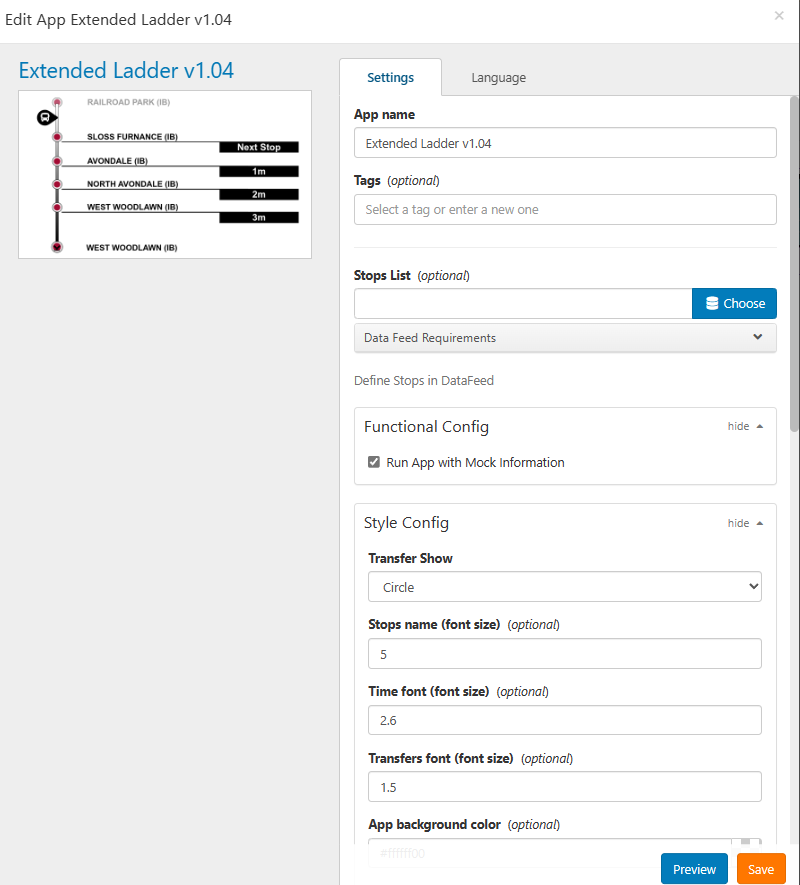

Settings Tab
App Name:
A unique name of an instance of an application must input here before an application instance can be saved.
Tags:
Tags can be used to further identify information about an instance of the app, such as where it is being used.

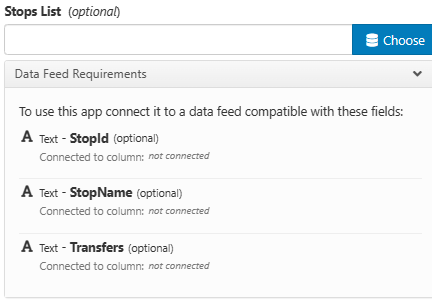

Stops List:
This section allows a data feed to be added to change how a stop name is displayed and what transfers are at upcoming stops.
Functional Config
Run App with Mock Information:
This allows the app to run with mock information in order to see how it looks. Normally the app would get information from the WDM for the vehicle it is installed on.
Style Config
Transfer Show:
Selects shape of icon where transfers are shown.
Stops name (font size):
Adjust font size of stop names.
Time font (font size):
Adjust the font size of the time.
Transfers font (font size):
Adjust the font size of transfers.
App background color:
Changes the background color of the app.
Route bar background color:
Changes the color of the route bar.
First stop background color:
Changes the inside circle color for first stop listed, which is the stop the vehicle last passed.
First stop name text color:
Changes text color for the first stop listed, which is the the vehicle last passed.
Stops background color:
Changes the inside circle color for all stops except the first and last stops listed.
Stops name text color:
Changes text color for all stops except the first and last stops listed.
Last stop background color:
Changes the inside circle color for the last stop listed, which is the destination of the vehicle.
Last stop text color:
Changes the text color for the last stop listed, which is the destination of the vehicle.
Next stop popup background color:
Changes background color of next stop popup, which displays when close to stop.
Next stops popup background color:
Changes the color of the more stops popup background.
More stops text color:
Changes the text color in more stops popup.
Arrow color:
Changes color of arrow inside circle for last stop listed.
Stop location background color:
Changes color of area around bus icon.
Bus icon color:
Changes color of the bus icon.
Transfers background color:
Changes color of background of transfers, if transfers are shown.
Transfers Color:
Changes color of transfers icons, if shown.
Fallback Overlay:
The color of the overlay shown when no stop data is available.
