Guidelines For Installing MP.TV-EX49sw-Dual Display

Guidelines For Installing MP.TV-EX49sw-Dual Display

The MP.TV-EX49sw-Dual display is designed to be ceiling-mounted. It has been pre-configured at the factory to be plug and play and requires very little configuration. The following article provides a step-by-step guide to ensure safe & secure mounting

Steps for mounting the MP.TV-EX49sw-Dual:

  1. The MP.TV-EX49sw-Dual display is supplied with ceiling mount brackets and all necessary nuts, bolts, washers and hexheads.

    3D view of  the MP.TV-EX49sw-Dual display

  2. Once you unbox the display, locate the two sets of mounting holes on the top of the display.

    One set of ceiling mount holes on the top side of the display

  3. Align a ceiling mount bracket over one set of the holes and secure the two using a washer and Hex Heads at each of the four holes. Repeat the above procedure for the other bracket.

    Ceiling mount bracket

  4. After mounting the brackets, your unit should appear as seen in the image below

    3D view of  the MP.TV-EX49sw-Dual display after attaching ceiling-mount brackets

  5. The large central hole seen in the image below is used to run the power cord to the screen.

    Ceiling-mount bracket with large central hole for running power cord

  6. Once your ceiling mount bracket is secured to the screen, secure the nut shown below to the large central hole. This will enable you to run the power cord easily.

    Nut for running the power cord to the screen, through the ceiling mount bracket.

  7. To secure the brackets to a beam, use the M12X130 Hex Heads provided with your display

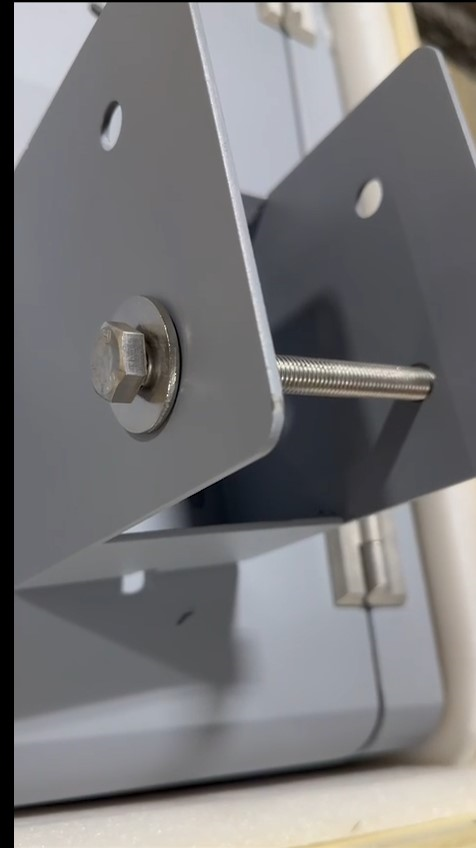

    M12X130 Hex Head secured to ceiling bracket using M12 washer

  8. Pass an M12 washer through the M12X130 Hex Head. Then pass the Hex Head through one side of the ceiling bracket, the holes in beam and then through the other side of the ceiling mount bracket. Secure the threaded side of the M12X130 Hex Head to the ceiling mount bracket with an M12 washer and M12 nut.
    Important: Using a washer at all holes of the ceiling bracket is necessary.

Connect the power and ethernet cables

  1. Carefully open the screen panel to expose the wiring inside the main MP.TV-EX49sw-Dual display unit.

  2. Connect the power cable to the socket shown below.

    Location of power socket inside the MP.TV-EX49sw-Dual Display

  3. Connect the Ethernet cable to the port shown below.


    Location of ethernet port inside the MP.TV-EX49sw-Dual Display
